Please follow these directions for the installation of your shade sail…

The general principle for installing sails is to connect the highest corner(s) first followed by the remaining points.
Do not fully tighten each corner until all are attached to their relevant fixing points.
Once all points are loosely connected slowly work your way around the sail (starting at highest points first) tensioning each fixing point little by little until loads are distributed evenly at each corner.
Allow 2 people approx 7-10 mins to erect the sail. (one person approx 15)
johnc

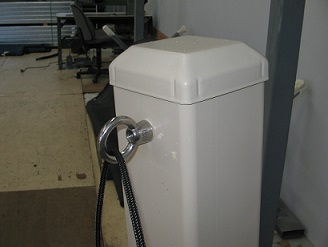

Step 1:

Place rope through eyebolt

johnc

Step 2:

Then go back through ring on shade sail as shown i.e.: come up through bottom of the ring

johnc

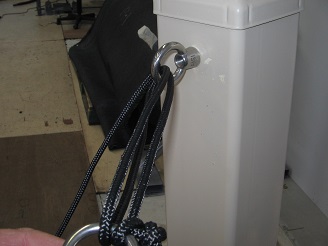

Step 3:

Then back through the eyebolt

johnc

Step 4:

At this stage tie the fixing point off loosely and move on to the next corner.

johnc

Step 5:

Once all corners are attached loosely then start to work around the sail tensioning each point as tight as you can by hand.

Note: that load is always placed on the fixing point and not the sail when tensioning.  Tie each corner off as you go around.
johnc

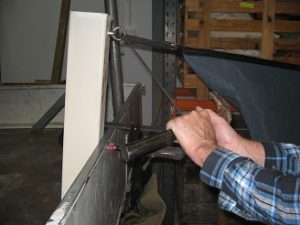

Step 6:

Once all points are reasonably tight using a steel bar or similar (bare hands are OK if they are tough enough to handle rope burn) tighten the sails fully.

johnc

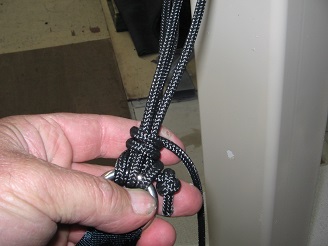

Step 7:

Then wrap the excess rope as shown around the sail a minimum of 3 rotations, preferably more.

johnc

Step 8:

Tie sail off using a minimum of 2 ½ hitches (granny Knots). Note that load is always placed on the fixing point and not the sail when tensioning. Tie each corner off as you go around.

johnc

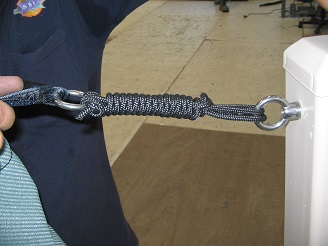

Step 9:

Tuck excess rope away and finished tie off should look similar to this.
